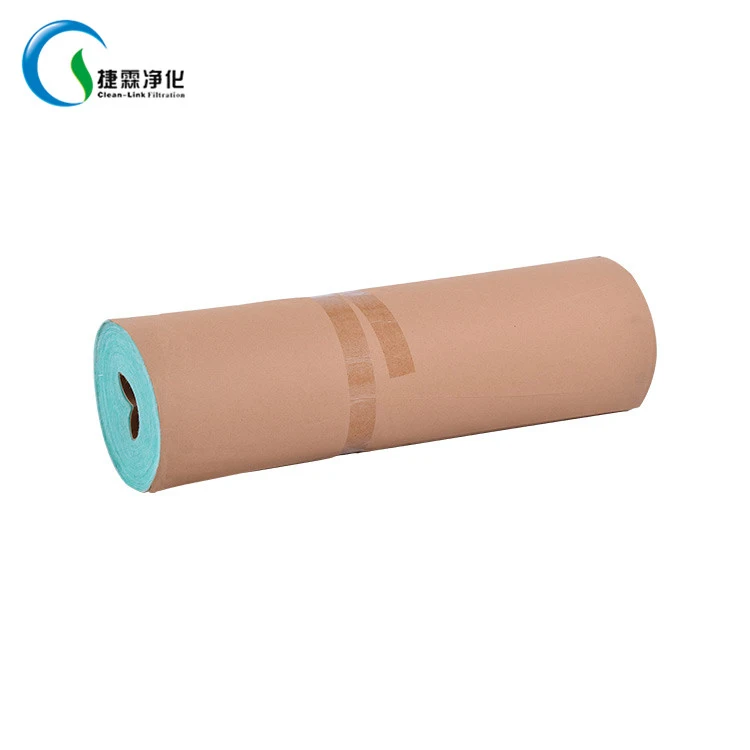

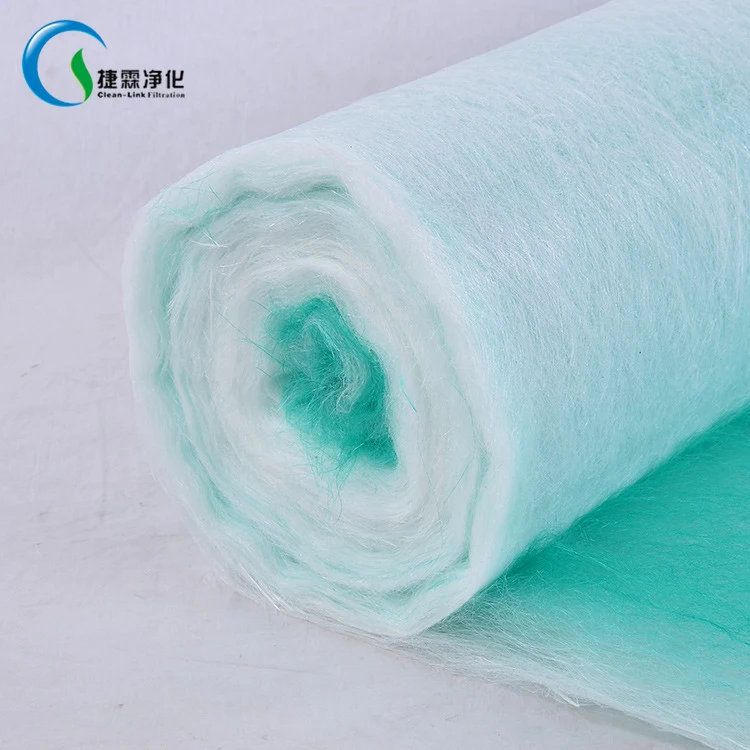

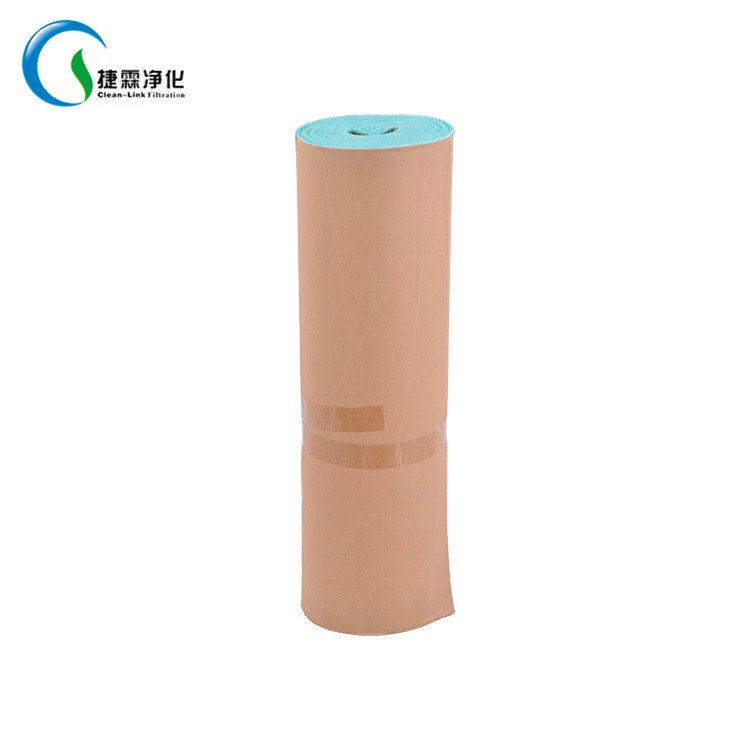

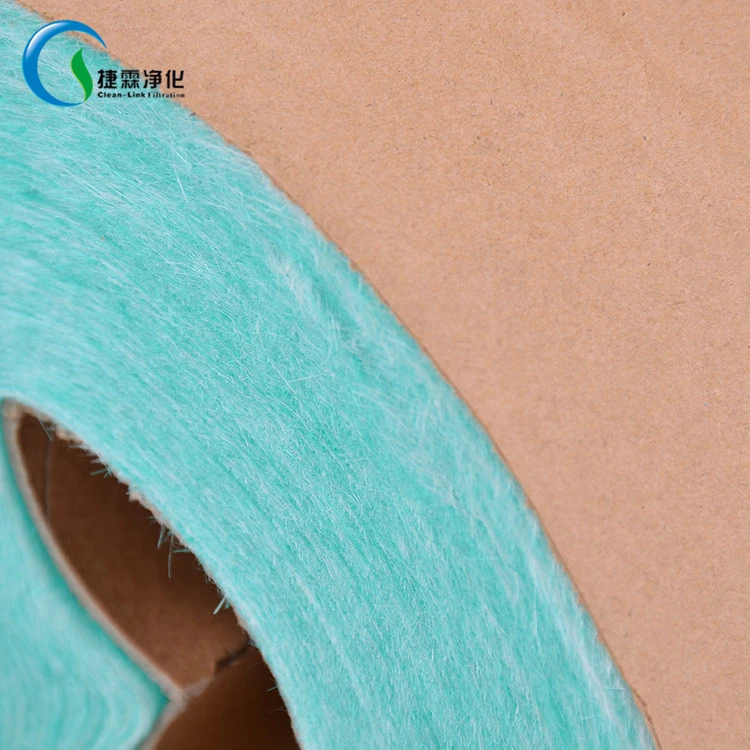

White and Green Spray Booth Filters Fiberglass Media

Product Description

White and Green Spray Booth Filters Fiberglass Media1) small resistance
2) tempreture resistance up to 170 degree Speciality:1)   Made of long fibreglass in non-woven way,large ventilation quantity,small resistance, good efficiency of the dust arrestance for the over-spray.2)   It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching, specially , PA-50/60/PA-100 is suitable for using heat recovery system3)   High strength fibreglass increasing structure;the windward side is green ,the leeward side is white..4)   The low compression performance maintains its outlook,which is completely useful for the filtration fibre to keep the oil mist and the dust5)   Nonflammability, heat resistance 170 temperature6)   The compression packing may save the fare and the storage space in the transportation.After decompression, it will regain its original condition7)   Outer frame  may choose the paper frame , the galvanization iron frame,or aluminium alloy frame.Using:1)    Thick dust filtration for the general air-condition system.2)    Applied to the dry spray painting platform and the exchaust gas system of the automobile spray paintting room.It is environment-friendly, reducing the pollution to the  environmentRemark:Wide variety of sizes and thicknessspecification:

Model

PA-50/60

PA-100

Avg.arrestance(acc.EN779)

92%-96%

97%-99%

Initial pessure drop

15Pa

20Pa

Final pessure drop

250Pa

280Pa

   Air velocity

0.7-1.75m/s

0.7-1.75m/s

   Dust holding at tested final

3200-3600 g/

3600-4900g/

Temp.resistance,const

170

170

Temp.short peaks

190

190

     Normal thickness

50/60mm

100mm



White and Green Spray Booth Filters Fiberglass Media
White and Green Spray Booth Filters Fiberglass Media
White and Green Spray Booth Filters Fiberglass Media
White and Green Spray Booth Filters Fiberglass Media
White and Green Spray Booth Filters Fiberglass Media
White and Green Spray Booth Filters Fiberglass Media
White and Green Spray Booth Filters Fiberglass Media


Clean-Link White and Green 50mm/60mm Fiberglass Filter Media
 Why us                1We have specialized in the export of air filters for over 8 years.2We have our own factory and brand.3We  provide OEM and ODM service ,sample production and service according to your demand4The dimension can be customized. 5 The delivery date will be within 2 weeks6The products have passed ISO90012008 and SGS certification.   7With independent R&D and design capablities.8Well equipped with complete faciliies and skilled empolyees.

We sincerely hope to cooperate with you and we believe that our products can bring you more profits; we welcome and invite friends from all over the world to visit us and give us advices.Welcome to your inquiry.Your satisfied is our great pursuit!

Contact us if you need more details on Spray Booths Spray Booths. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Filter Media、Pre Filter Factory Price. If these products fail to match your need, please contact us and we would like to provide relevant information.
