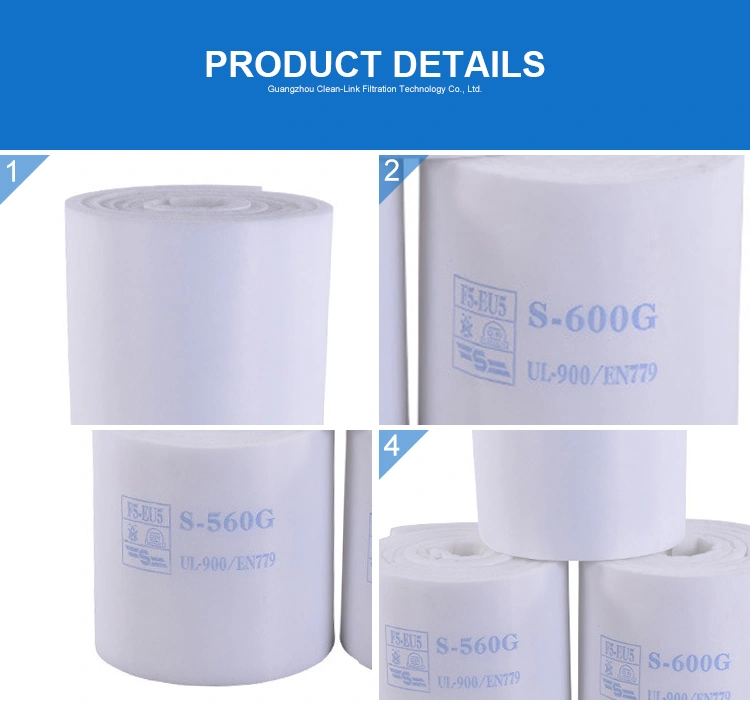

Clean-Link EU5/F5 Filtration F5 EU5 M5 Synthetic Fiber 560g Ceiling Filter Ceiling Filter
Product Description
Product Description
It is designed for premium cross-draft and select downdraft intake filtration in paint spray booths in the automotive refinishing and industral finishing markets.
--90+% efficiency on particle sizes greater than 10 microns
--2 layers, 100% polyester, 3 ply media with impregnated tackifier
--Heat sealed to 9 gauge internal support frame
--Rated UL 900, Class1.
Product advantages
1. It is made from the anti-break organic synthesis fiber in high-powered melt way;
2.Gradual structure, the fiber density increases gradually towards pure air;
3. Fully imgrenated media with adhesive treatment makes dust particles unable to pass;
4.It is at the customers' choice that the material have the entire coherency, the surface viscosity, dry processing
5.Conform to European DIN53438-F1 and American UL900-class 2
Note: Other specifications are available on request.
Related Products
Production Application
Pre-filtration and second filtration for the ventilation system of the air condition;
The filtration for entering or returning the air in the clean room.
Company Information
Exhibition & Certificate
Why Us?
1. We have specialized in the export of air filters for over 13 years.2. We have our own factory and brand.3. We provide OEM and ODM service ,sample production and service according to your demand4. The dimension can be customized. 5. The products have passed ISO90012008 and SGS certification. 6. With independent R&D and design capablities.
Contact Us
Ada Huang Contact us if you need more details on Tacky Filter. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Tacky Filters、Tacky Filters for Spray Booth Filtration. If these products fail to match your need, please contact us and we would like to provide relevant information.
It is designed for premium cross-draft and select downdraft intake filtration in paint spray booths in the automotive refinishing and industral finishing markets.
--90+% efficiency on particle sizes greater than 10 microns
--2 layers, 100% polyester, 3 ply media with impregnated tackifier
--Heat sealed to 9 gauge internal support frame
--Rated UL 900, Class1.
Product advantages
1. It is made from the anti-break organic synthesis fiber in high-powered melt way;
2.Gradual structure, the fiber density increases gradually towards pure air;
3. Fully imgrenated media with adhesive treatment makes dust particles unable to pass;
4.It is at the customers' choice that the material have the entire coherency, the surface viscosity, dry processing
5.Conform to European DIN53438-F1 and American UL900-class 2
Note: Other specifications are available on request.
Type | CL-630G | C-600G | FS-350G | S-560G |
Material | Polyester | |||
Avg.arrestance | 99% | 98% | 95% | 95% |
Weight | 630 g/m2 | 600 g/m2 | 420 g/m2 | 400 g/m2 |
Air velocity | 0.25m/S | 0.25m/S | 0.25m/S | 0.25m/S |
Rated air flow | 900 m³/h | 900 m³/h | 900 m³/h | 900 m³/h |
Initial resistance | 45Pa | 35Pa | 28Pa | 25Pa |
Final resistance | 350Pa | 400Pa | 450Pa | 300Pa |
Dust holding at tested final | 520 g/m2 | 450 g/m2 | 400 g/m2 | 380 g/m2 |
Filtration class | F5 | F5
| F5
| F5
|
Resistance humidity | 100% | 100% | 100% | 100% |
Temp.resistance | 120ºC | 140ºC | 120ºC | 120ºC |
Normal thickness | 25mm | 22mm | 20mm | 22mm |
Roll sizes standard | 1.6*21 2.0*21 1.0*21 | 1.6*21 2.0*21 1.0*21 | 1.6*21 2.0*21 1.0*21 | 1.6*21 2.0*21 1.0*21 |
Production Application
Pre-filtration and second filtration for the ventilation system of the air condition;
The filtration for entering or returning the air in the clean room.
Company InformationExhibition & Certificate
Why Us?
1. We have specialized in the export of air filters for over 13 years.2. We have our own factory and brand.3. We provide OEM and ODM service ,sample production and service according to your demand4. The dimension can be customized. 5. The products have passed ISO90012008 and SGS certification. 6. With independent R&D and design capablities.
Contact Us
Ada Huang Contact us if you need more details on Tacky Filter. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Tacky Filters、Tacky Filters for Spray Booth Filtration. If these products fail to match your need, please contact us and we would like to provide relevant information.
