High Quality Washable Air Inlet Vent Filter

Specifications

1.Low initial resistance
2.Large dust holding capacity;Flexible
3.Economical

 Speciality

 1)  Pre-filtration for the heavy polluted general draft apparatus and the air control        system.
2)  Anti-fractured PET organic synthetic fibre
3)  Large dust holding capacity , small resistance , long service life and                      economical
4)  Not contain silicon , chemical resisting and anti-acidic
5)  Conform to European and American classfications for nonflammability( e.g              DIN53438-F1 , UL900-class 2 with flameout)
6)  Applied to pank filter and foldaway filter
7)  Available in paper frame ,galvanize frame , aluminium frame and so on
  Using
 1)  Applied to many industry such as pollution controling , public constrution,air-conditon ,electronic . pharmacy , food and so on


Model	C16-100	C16-200	PE-200	C16-300	C36-400
Material	Polyester
Thickness	5mm	10mm	15mm	15mm	20mm
Initial resistance	20Pa	30Pa	35Pa	35Pa	40Pa
Final resistance	125Pa	200Pa	250Pa	250Pa	250Pa
Avg.arrestance(acc.EN779)	68%	83%	85%	88%	91%
Temp.resistance	100°c
Temp.short peaks	120°c
Dust holding at tested final	380g/m²	450g/m²	500g/m²	550g/m²	580g/m²
Filtration class	G2	G3	G3	G4	G4
Normal size	2.0*40	2.0*20	2.0*20	2.0*20	2.0*20

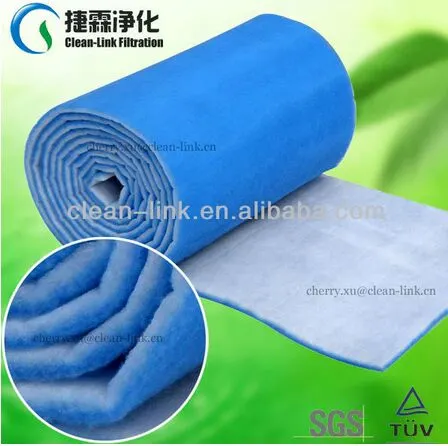

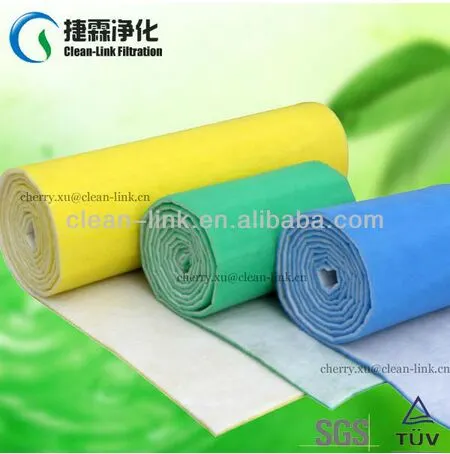

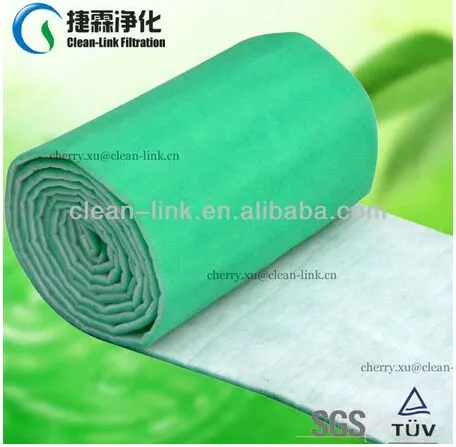

productiong picture








  Remark
Variety of sizes and thickness ,according the customers requirement.

If you have any inquiry please do not be hesitate to

 contact with us! And warm welcome to visit our factory

 and showroom!

 Mob:+86-18218986759 Miss Millie lim is at your service in 24 hours.

Contact us if you need more details on Washable Air Inlet Filter. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Air Inlet Filter Media、Pre Efficiency Filter Media. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : pre filter media
