Clean-Link G4 Filter Efficiency Furnace Air Filter/G4 Filters
Product Description

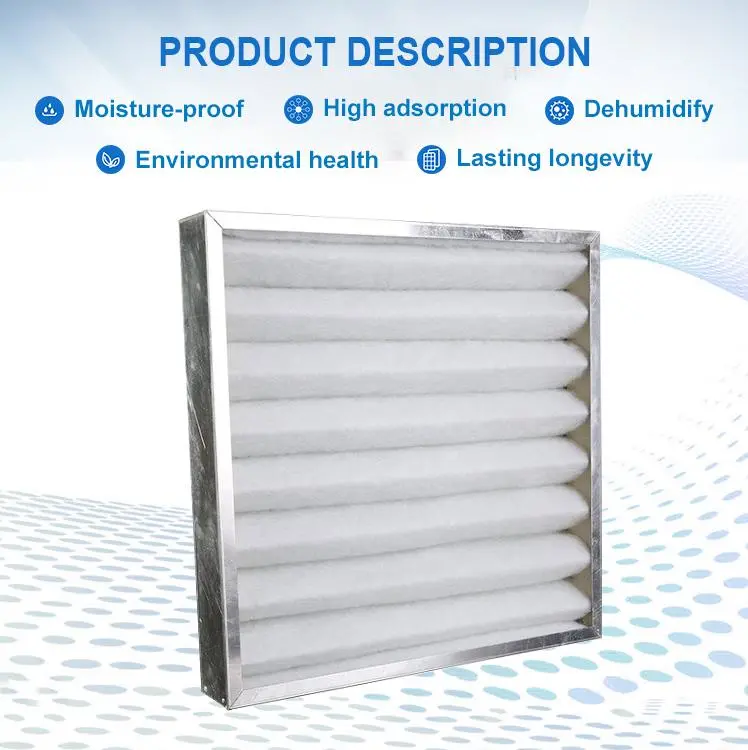

Plank Washable Coarse Filter Mesh
Speciality:
The material is the high quality polyester synthetic fibre (coarse filter cotton);
Metal frame, easily replace;
Conforms to classified standard for protecting from fire in Europe and the US - DlN53438-F1, UL900-class2.;
The moisture-proof may reach 100%;
Temp. resistance :80ºC.
Using:
Pre-filtration and second filtration for the ventilation system of the air condition;
The filtration for entering or returning the air in the clean room.
Related Products
Production Application
Pre-filtration and second filtration for the ventilation system of the air condition;
The filtration for entering or returning the air in the clean room.
Company Information
Exhibition & Certificate
Why Us?
1. We have specialized in the export of air filters for over 13 years.2. We have our own factory and brand.3. We provide OEM and ODM service ,sample production and service according to your demand4. The dimension can be customized. 5. The products have passed ISO90012008 and SGS certification. 6. With independent R&D and design capablities.
Contact Us
Ada Huang Contact us if you need more details on Filter Mesh. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Plank Filter Mesh、Washable Filter Mesh. If these products fail to match your need, please contact us and we would like to provide relevant information.
Speciality:
The material is the high quality polyester synthetic fibre (coarse filter cotton);
Metal frame, easily replace;
Conforms to classified standard for protecting from fire in Europe and the US - DlN53438-F1, UL900-class2.;
The moisture-proof may reach 100%;
Temp. resistance :80ºC.
Using:
Pre-filtration and second filtration for the ventilation system of the air condition;
The filtration for entering or returning the air in the clean room.
Class | Size W*H * D | (m3/h) Rated air flow | The ratio of the initial resistance and the rated air flow (Pa) | ||
W*H*D ( mm ) | |||||
| 70% | 100% | 120% | |||
| G3 | 595*595*46mm | 3400 | 35 | 65 | 90 |
| G3 | 290*595*46mm | 1700 | 35 | 65 | 90 |
| G3 | 595*595*96mm | 3400 | 30 | 55 | 75 |
| G3 | 290*595*96mm | 1700 | 30 | 55 | 75 |
| G4 | 595*595*46mm | 3400 | 50 | 85 | 110 |
| G4 | 290*595*46mm | 1700 | 50 | 85 | 110 |
| G4 | 595*595*96mm | 3400 | 45 | 80 | 105 |
| G4 | 290*595*96mm | 1700 | 45 | 80 | 105 |
| F5 | 595*595*46mm | 3400 | 85 | 130 | 190 |
| F5 | 290*595*46mm | 1700 | 85 | 130 | 190 |
| F5 | 595*595*96mm | 3400 | 75 | 105 | 145 |
| F5 | 290*595*96mm | 1700 | 75 | 105 | 145 |
Production Application
Pre-filtration and second filtration for the ventilation system of the air condition;
The filtration for entering or returning the air in the clean room.
Company InformationExhibition & Certificate
Why Us?
1. We have specialized in the export of air filters for over 13 years.2. We have our own factory and brand.3. We provide OEM and ODM service ,sample production and service according to your demand4. The dimension can be customized. 5. The products have passed ISO90012008 and SGS certification. 6. With independent R&D and design capablities.
Contact Us
Ada Huang Contact us if you need more details on Filter Mesh. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Plank Filter Mesh、Washable Filter Mesh. If these products fail to match your need, please contact us and we would like to provide relevant information.
