Clean-Link New Stylish Paper Filter Frame Pleats 24X24 HVAC New Air Conditional Filters
Product Description

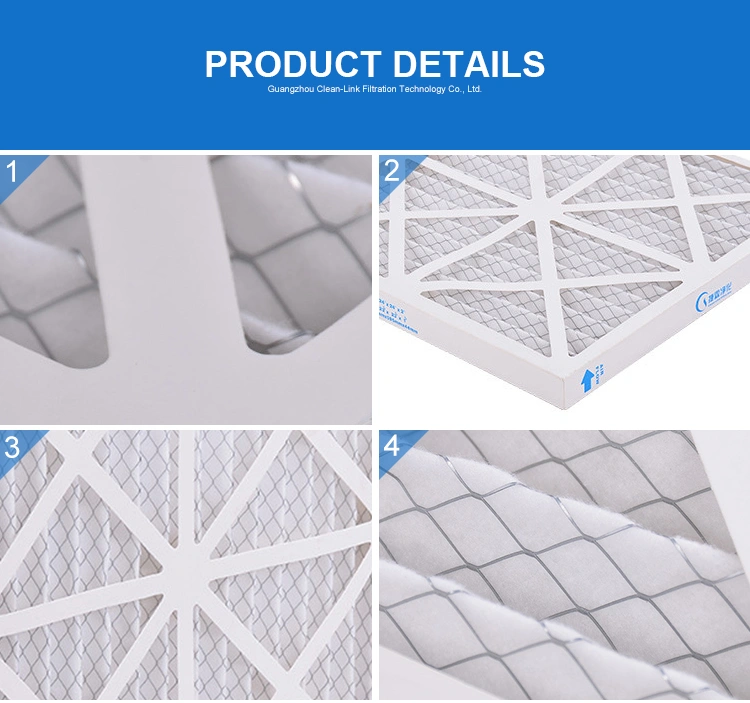

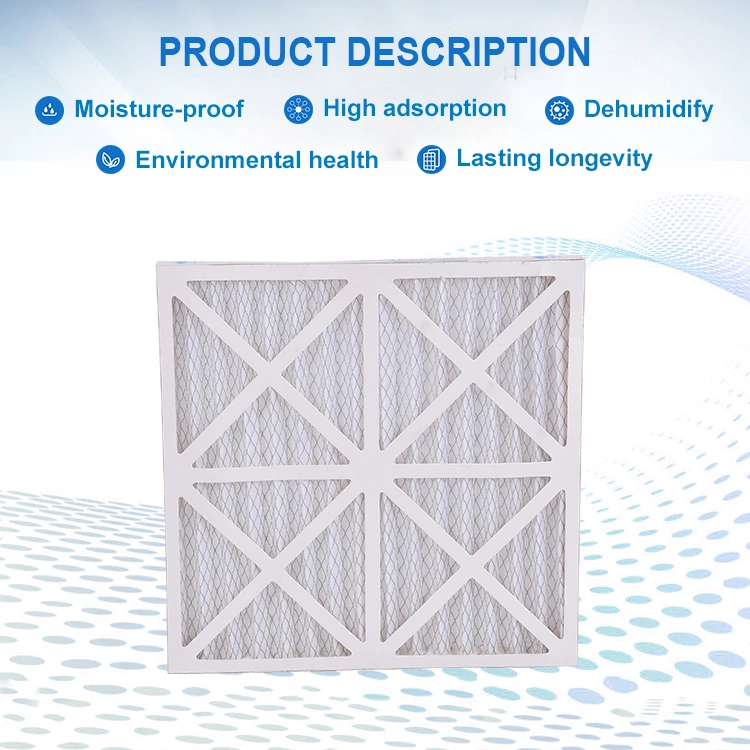

Foldaway paper frame filter mesh
Product advantages
1.The filtration material is made from non-woven fabrics, and the synthetic fiber. It has the advantage of the large dust holding capacity, the low pressure loss in the initial period and lager air flow.
2.The filtration material compounds with the material net, and is designed into the foldaway, which will provide the current air with the largest filtration area, 5 times' filtration area as the common plane mesh. Paper frame and metal frame are available, which is convenient for replace, less purchasing expense.
3.The moisture-proof: 100%;
4.Heat resistance: 80ºC;
5.The rank of the filtration: G4.F5.F6.F7.F8.
Product Description1.Large dust holding capacity2.The low pressure loss in the initial period 3.Lager air flow
Using:
Pre-filter for the air-condition filtration system. It can lengthen the working life of the middle and high efficiency filter.Note: Other specifications are available on request.
Related Products

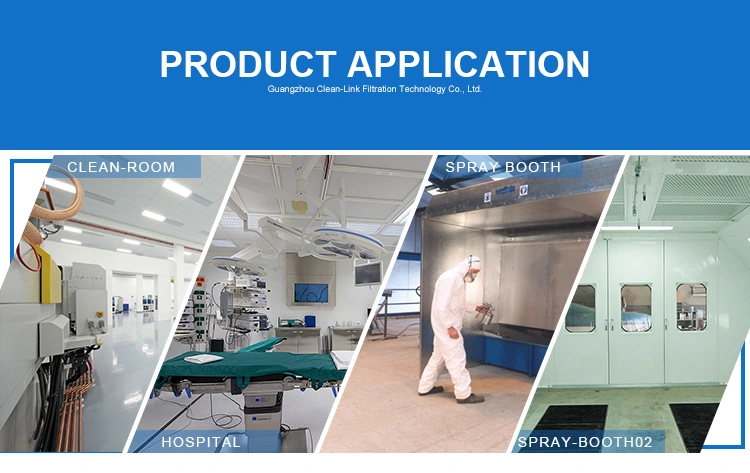

Production Application
Pre-filtration and second filtration for the ventilation system of the air condition;
The filtration for entering or returning the air in the clean room.
Company Information
Exhibition & Certificate
Why Us?
1. We have specialized in the export of air filters for over 13 years.2. We have our own factory and brand.3. We provide OEM and ODM service ,sample production and service according to your demand4. The dimension can be customized. 5. The products have passed ISO90012008 and SGS certification. 6. With independent R&D and design capablities.
Contact Us
Ada Huang Contact us if you need more details on Cardboard Frame Pre Filter. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Pre Pleated Panel Filter、Air Filter with Wire Mesh. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product advantages
1.The filtration material is made from non-woven fabrics, and the synthetic fiber. It has the advantage of the large dust holding capacity, the low pressure loss in the initial period and lager air flow.
2.The filtration material compounds with the material net, and is designed into the foldaway, which will provide the current air with the largest filtration area, 5 times' filtration area as the common plane mesh. Paper frame and metal frame are available, which is convenient for replace, less purchasing expense.
3.The moisture-proof: 100%;
4.Heat resistance: 80ºC;
5.The rank of the filtration: G4.F5.F6.F7.F8.
Product Description1.Large dust holding capacity2.The low pressure loss in the initial period 3.Lager air flow
Using:
Pre-filter for the air-condition filtration system. It can lengthen the working life of the middle and high efficiency filter.Note: Other specifications are available on request.
Normal size |
Actual size W*H*W(mm) | Rated air flow(m³/h) | ||
|
| 1.5m/s | 2.5m/s | 3.0m/s |
24*24*1 | 595*595*22 | 2040 | 3400 | - |
20*24*1 | 495*595*22 | 1785 | 2975 | - |
20*20*1 | 495*495*22 | 1445 | 2380 | - |
12*24*1 | 287*595*22 | 1020 | 1700 | - |
24*24*2 | 595*595*44 | 2040 | 3400 | 4250 |
20*24*2 | 495*595*44 | 1700 | 2805 | 3570 |
20*20*2 | 495*495*44 | 1445 | 2380 | 2975 |
16*24*2 | 390*595*44 | 1445 | 2380 | 2675 |
16*20*2 | 390*495*44 | 1105 | 1870 | 2380 |
12*24*2 | 287*595*44 | 1020 | 1700 | 2125 |
24*24*4 | 595*595*90 | 2040 | 3400 | 4250 |
20*20*4 | 495*495*90 | 1455 | 2380 | 2975 |
12*24*4 | 287*595*90 | 1020 | 1700 | 2125 |
Related Products
Production Application
Pre-filtration and second filtration for the ventilation system of the air condition;
The filtration for entering or returning the air in the clean room.
Company InformationExhibition & Certificate
Why Us?
1. We have specialized in the export of air filters for over 13 years.2. We have our own factory and brand.3. We provide OEM and ODM service ,sample production and service according to your demand4. The dimension can be customized. 5. The products have passed ISO90012008 and SGS certification. 6. With independent R&D and design capablities.
Contact Us
Ada Huang Contact us if you need more details on Cardboard Frame Pre Filter. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Pre Pleated Panel Filter、Air Filter with Wire Mesh. If these products fail to match your need, please contact us and we would like to provide relevant information.
