Home > Products > cardboard frame foldaway filter > Clean-Link Wholesale Panel Air Filter G2 EU3 Metallic Air Pre Filter Media

Clean-Link Wholesale Panel Air Filter G2 EU3 Metallic Air Pre Filter Media

Product Description

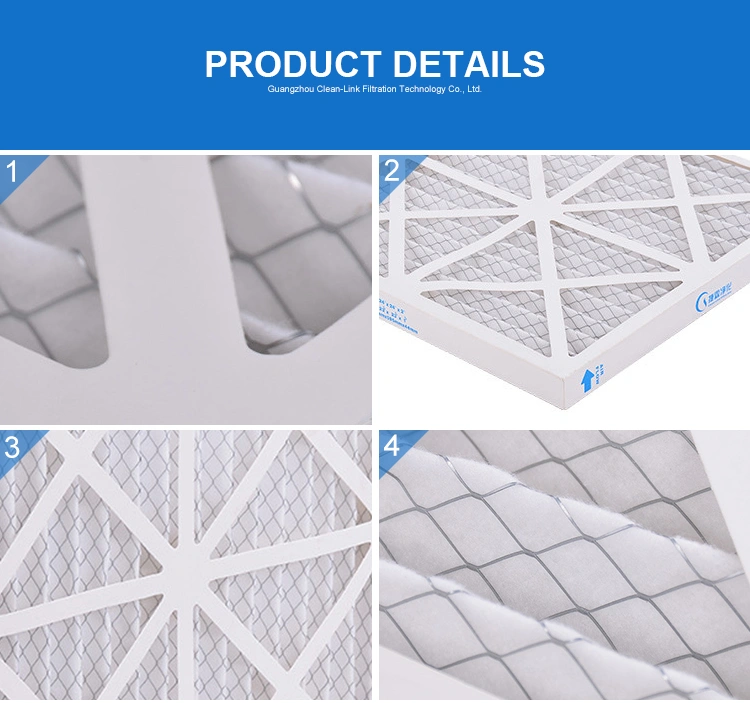

Foldaway paper frame filter mesh


 Product advantages
1.The filtration material is made from non-woven fabrics, and the synthetic fiber. It has the advantage of the large dust holding capacity, the low pressure loss in the initial period and lager air flow.
2.The filtration material compounds with the material net, and is designed into the foldaway, which will provide the current air with the largest filtration area, 5 times' filtration area as the common plane mesh. Paper frame and metal frame are available, which is convenient for replace, less purchasing expense.
3.The moisture-proof: 100%;
4.Heat resistance: 80ºC;
5.The rank of the filtration: G4.F5.F6.F7.F8.

Product Description1.Large dust holding capacity2.The low pressure loss in the initial period 3.Lager air flow
Clean-Link Wholesale Panel Air Filter G2 EU3 Metallic Air Pre Filter MediaClean-Link Wholesale Panel Air Filter G2 EU3 Metallic Air Pre Filter Media

Using:
Pre-filter for the air-condition filtration system. It can lengthen the working life of the middle and high efficiency filter.Note: Other specifications are available on request.



Normal size



Actual size

W*H*W(mm)

 Rated air flow(/h)





1.5m/s

2.5m/s

3.0m/s

24*24*1

595*595*22

2040

3400

-

20*24*1

495*595*22

1785

2975

-

20*20*1

495*495*22

1445

2380

-

12*24*1

287*595*22

1020

1700

-

24*24*2

595*595*44

2040

3400

4250

20*24*2

495*595*44

1700

2805

3570

20*20*2

495*495*44

1445

2380

2975

16*24*2

390*595*44

1445

2380

2675

16*20*2

390*495*44

1105

1870

2380

12*24*2

287*595*44

1020

1700

2125

24*24*4

595*595*90

2040

3400

4250

20*20*4

495*495*90

1455

2380

2975

12*24*4

287*595*90

1020

1700

2125


Related Products
 Clean-Link Wholesale Panel Air Filter G2 EU3 Metallic Air Pre Filter Media

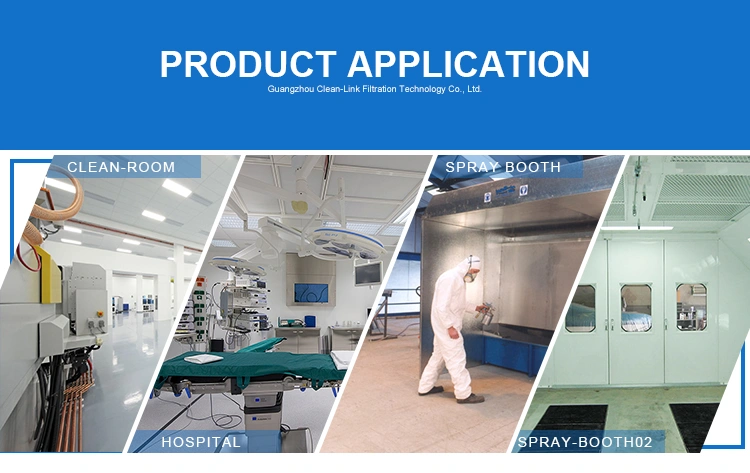

Production Application

Pre-filtration and second filtration for the ventilation system of the air condition;
The filtration for entering or returning the air in the clean room.

Clean-Link Wholesale Panel Air Filter G2 EU3 Metallic Air Pre Filter MediaCompany Information

Clean-Link Wholesale Panel Air Filter G2 EU3 Metallic Air Pre Filter Media

Exhibition & Certificate

Clean-Link Wholesale Panel Air Filter G2 EU3 Metallic Air Pre Filter Media
Clean-Link Wholesale Panel Air Filter G2 EU3 Metallic Air Pre Filter Media
Why Us?Clean-Link Wholesale Panel Air Filter G2 EU3 Metallic Air Pre Filter Media
1. We have specialized in the export of air filters for over 13 years.2. We have our own factory and brand.3. We  provide OEM and ODM service ,sample production and service according to your demand4. The dimension can be customized. 5. The products have passed ISO90012008 and SGS certification.   6. With independent R&D and design capablities.
